Which motherboards fit the THERMALTAKE View 270 Plus WS?

It takes ATX and smaller motherboards.

Can I fit a liquid cooler?

Check radiator support with us on WhatsApp before ordering.

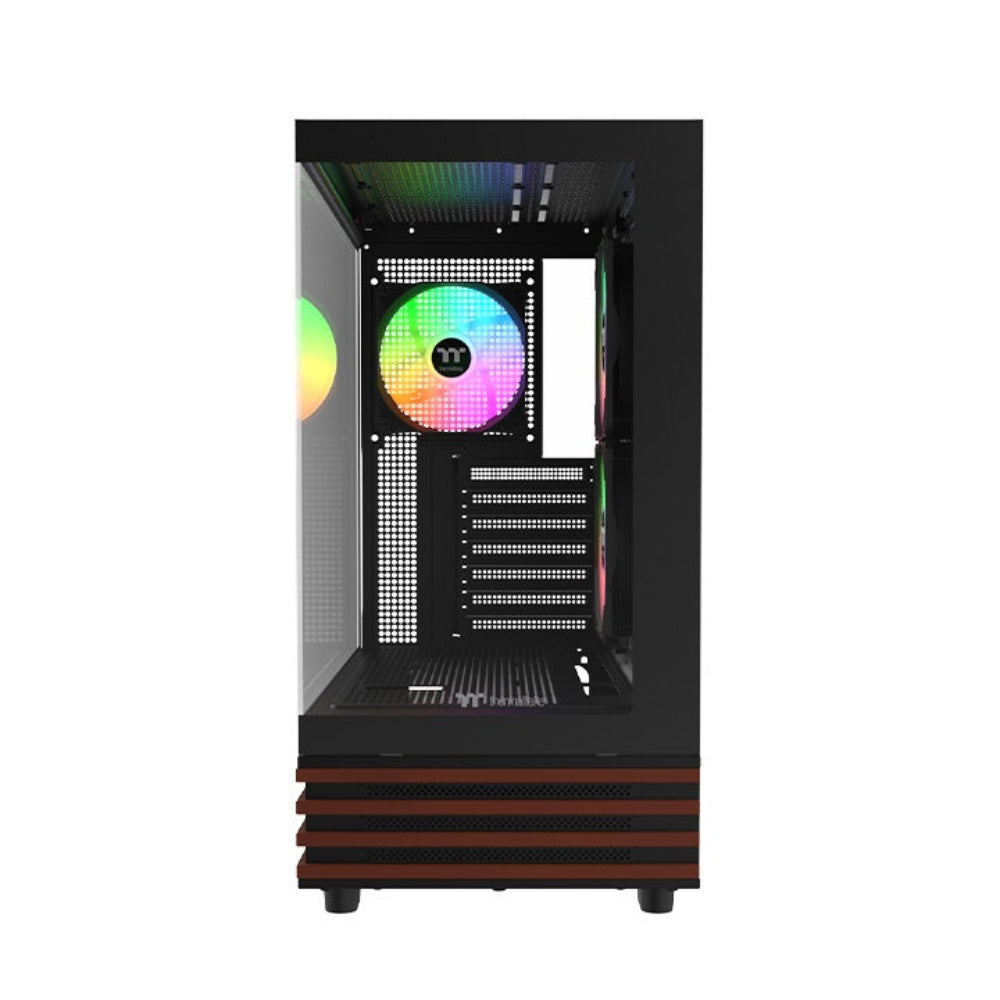

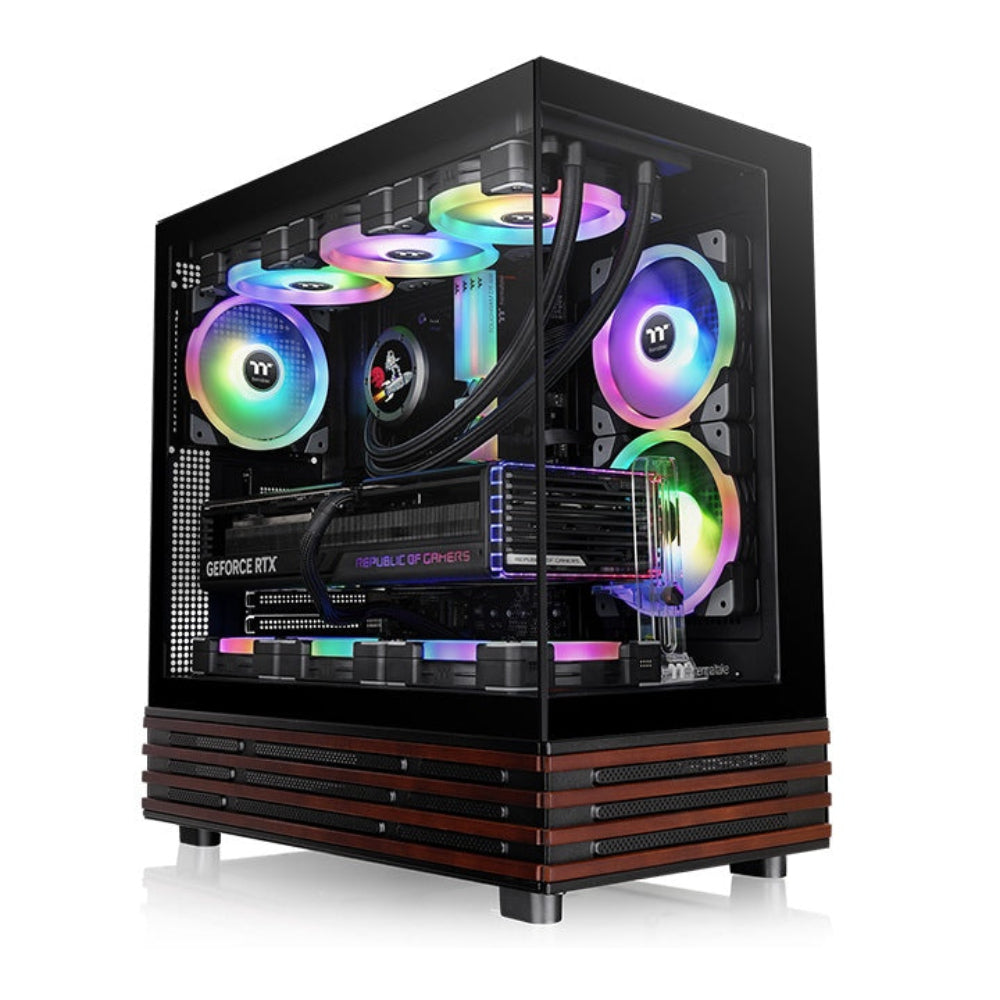

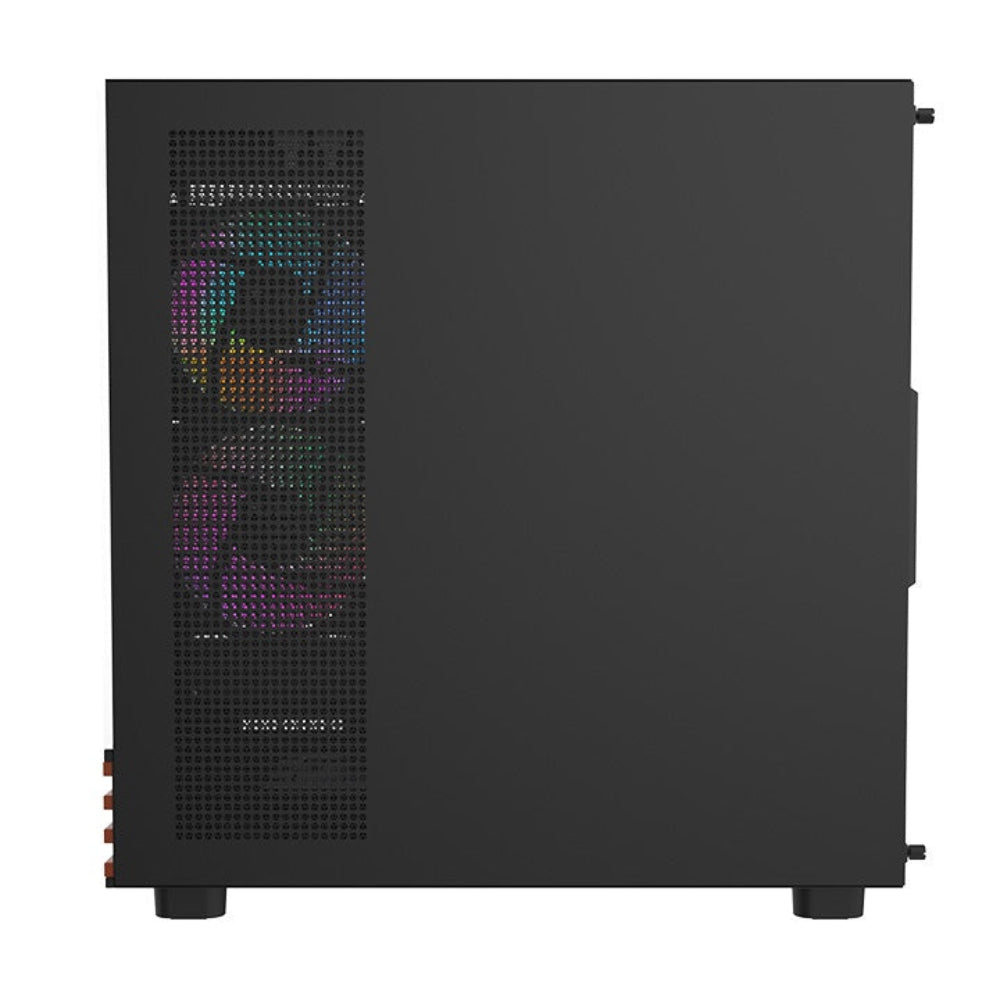

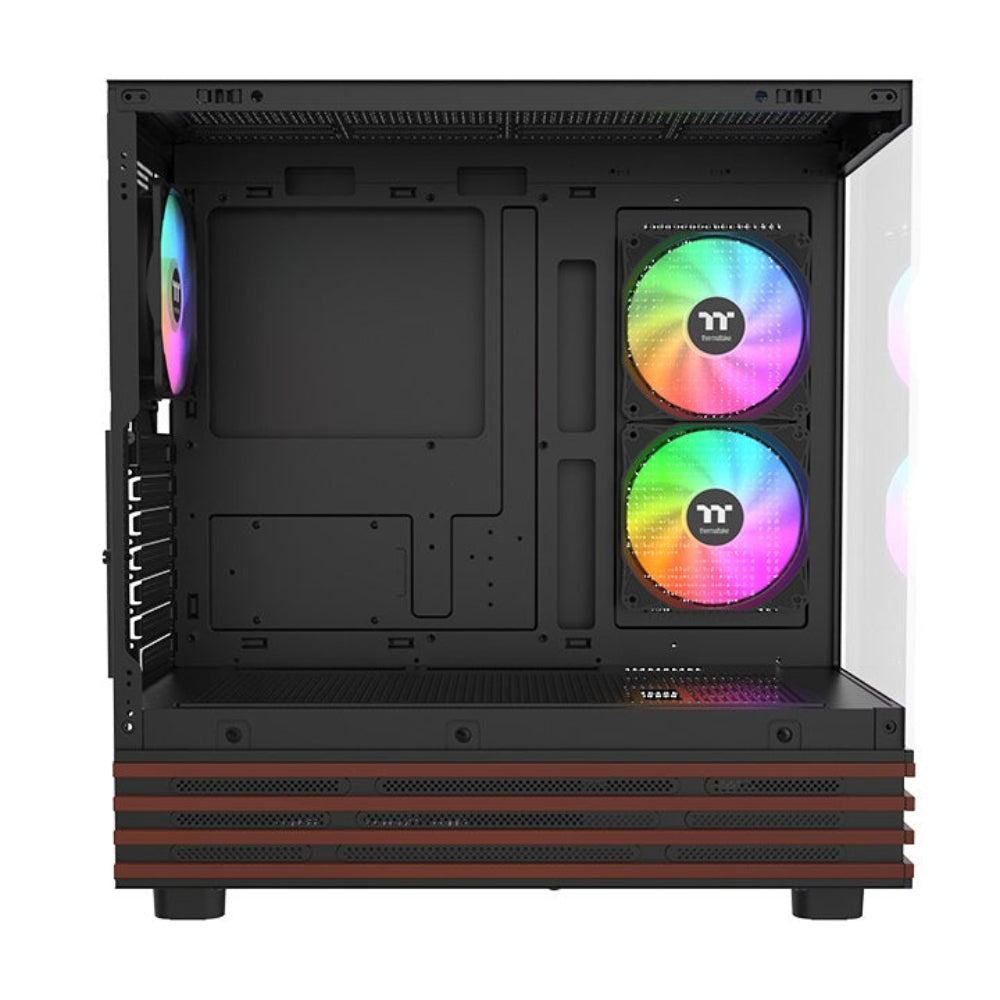

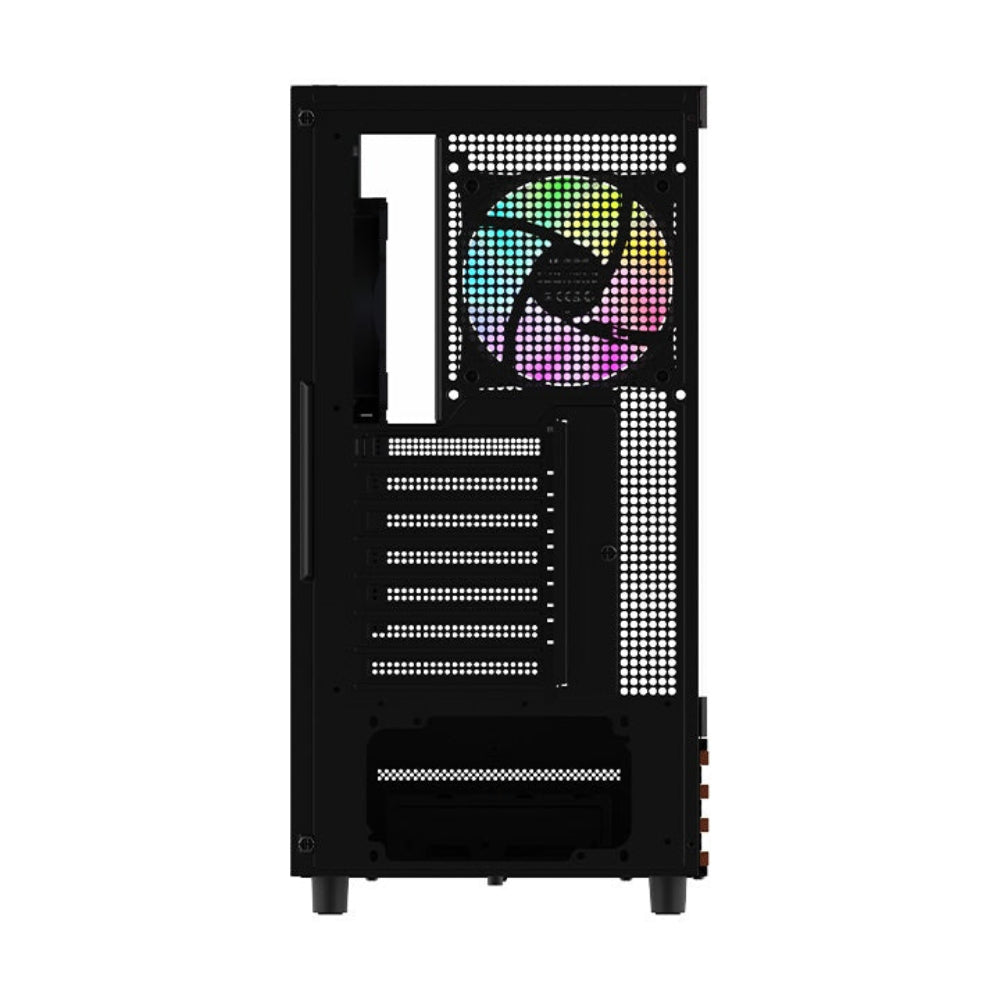

THERMALTAKE View 270 Plus WS ARGB Mid Tower Cabinet ( Black )

₹6,549

The Thermaltake View 270 Plus WS ARGB is a mid tower cabinet built with dual tempered glass panels for a clear view of internal components. It ships with three pre-installed ARGB fans and supports motherboards from Mini ITX up to E-ATX, making it suitable for a wide range of builds. A front USB 3.2 Gen 2 Type-C port adds modern connectivity for everyday use.

Full specifications ↓

Key features

Dual tempered glass side panels
3 pre-installed ARGB fans (2 intake, 1 exhaust)
Supports Mini ITX, Micro ATX, ATX and E-ATX motherboards
Front USB 3.2 Gen 2 Type-C port
Supports up to a 360mm radiator at the top
7 expansion slots for multi-GPU or add-in cards

Technical specifications

P/N	CA-1Y7-00M1WN-WS
Series	View
Model	View 270 Plus WS ARGB
Case Type	Mid Tower
Dimension (H x W x D)	456 x 230 x 454 mm (17.95 x 9.1 x 17.9 inch)
Side Panel	Tempered Glass x 2
Color	Black
Material	SPCC
Cooling System	Right(intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 2; Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays	2 x 3.5”, 1 x 2.5” or 2 x 2.5”
Expansion Slots	7
Motherboards	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm; Right (M/B Side): 2 x 120mm, 1 x 120mm; Rear: 1 x 120mm, 1 x 140mm; Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm
Radiator Support	Top: 1 x 360mm, 1 x 240mm, 1 x 120mm; Rear: 1 x 120mm
Clearance	CPU cooler max height: 180mm; VGA max length: 420mm; PSU max length: 280mm (HDD Cage at the front), 250mm (HDD Cage at the back)

Understand This Product — TechCureIndia

What it does

A mid tower PC cabinet that houses and cools the motherboard, GPU, storage drives and power supply, while offering ARGB lighting and tempered glass viewing panels.

What the key specifications mean

Case Type: A mid tower form factor that balances component capacity with reasonable desktop footprint.
Dimension (H x W x D): Helps you confirm the case will physically fit your desk space or PC cabinet area.
Side Panel: Dual tempered glass panels let you display internal components from two sides.
Cooling System: Pre-installed ARGB intake and exhaust fans provide baseline airflow without buying extra fans.
Drive Bays: Supports a mix of 3.5-inch and 2.5-inch drives for HDD and SSD storage.
Expansion Slots: 7 slots allow for GPU installation plus additional expansion cards.
Motherboards: Confirms compatibility with Mini ITX, Micro ATX, ATX and E-ATX boards.

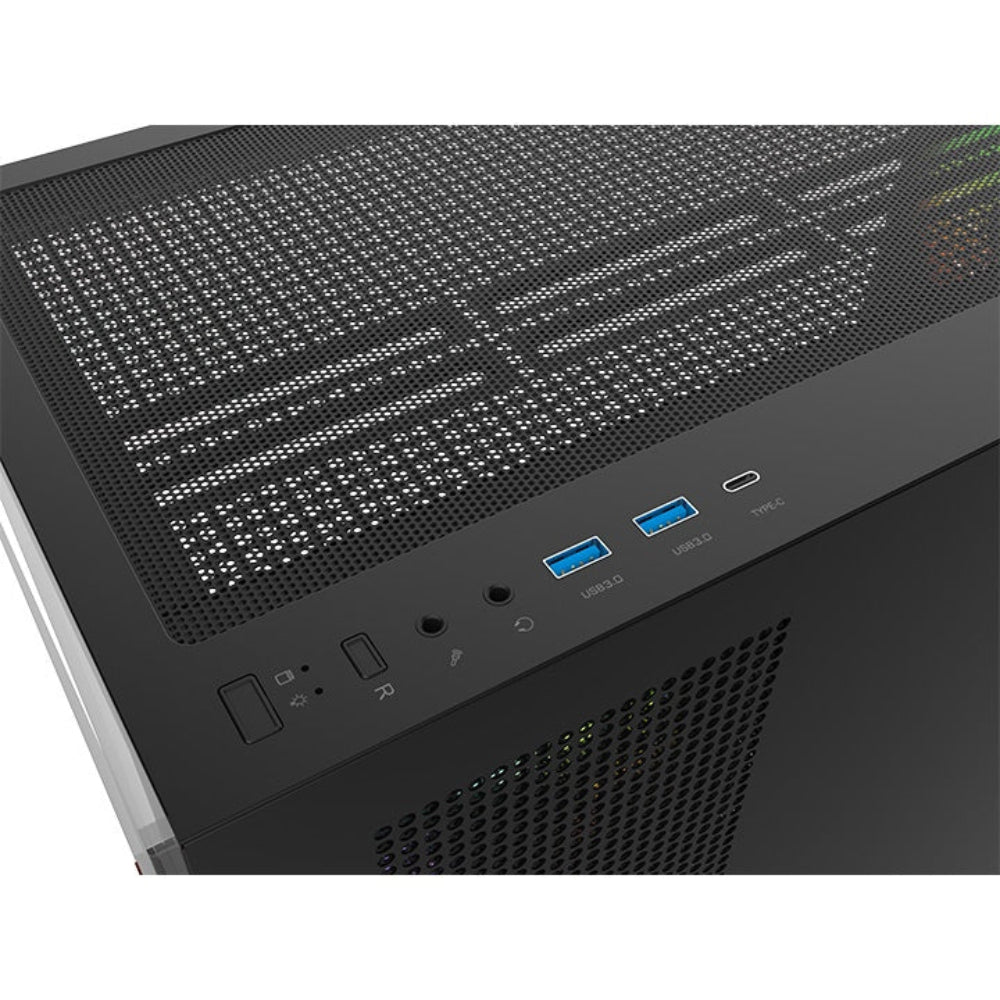

I/O Port: Front-panel USB 3.2 Gen 2 Type-C and USB 3.0 ports allow fast external device connections without reaching the rear of the case.
PSU: Uses a standard PS2 form factor power supply, which must be purchased separately.
Fan Support: Shows maximum fan configurations possible at the top, side, rear and power cover for future airflow upgrades.
Radiator Support: Indicates liquid cooling radiator compatibility, including up to 360mm at the top.
Clearance: Defines maximum CPU cooler height, GPU length and PSU length so buyers can check part compatibility before purchase.

Practical benefits

Clear dual-glass view of the build with ARGB lighting
Flexible motherboard support for varied build sizes
Pre-installed fans reduce initial cooling costs
Room for GPU, cooler and radiator upgrades

Who it suits

Users building a mid-to-large ATX or E-ATX gaming or workstation PC
Builders wanting ARGB lighting with tempered glass aesthetics
Users planning liquid cooling with a top-mounted radiator

Compatibility and installation

Motherboard must be Mini ITX, Micro ATX, ATX or E-ATX within the listed dimensions
PSU must be standard PS2 form factor, purchased separately
CPU cooler height must not exceed 180mm
Graphics card length must not exceed 420mm
Radiator size must match supported top (up to 360mm) or rear (120mm) mounting
Case dimensions: 456 x 230 x 454 mm, check desk/cabinet space before purchase
Pre-installed fans: 2 intake (right side), 1 exhaust (rear)
Front I/O includes USB 3.2 Gen 2 Type-C, USB 3.0 x2 and HD audio jack
PSU length clearance depends on HDD cage position (280mm or 250mm)

Important limitations

PSU is not included and must be bought separately
Only standard PS2 PSU form factor is supported
Maximum CPU cooler height is capped at 180mm
Maximum GPU length is capped at 420mm

Package contents

Specification verification required.

Buy separately:

Power supply unit (PS2 form factor)
Motherboard, CPU, RAM, storage and GPU
Additional case fans beyond the 3 pre-installed, if desired
Liquid cooling radiator and AIO/custom loop components, if desired

Check before you buy

Confirm your motherboard size falls within Mini ITX to E-ATX dimensions listed
Verify your GPU length is under 420mm
Verify your CPU cooler height is under 180mm
Check PSU length against front/rear HDD cage clearance
Confirm PSU is standard PS2 form factor

Questions about compatibility? Ask TechCure India on WhatsApp

Explanation written by TechCure India from the manufacturer's published specifications — it is not a measured test result.

** For complete and latest product details, please also verify once on the manufacturer's official website (official product page). Specifications on the official website are final.

THERMALTAKE View 270 Plus WS ARGB Mid Tower... — specifications

Brand	Thermaltake
Category	PC Cabinet
Model / MPN	CA-1Y7-00M1WN-WS
Case type	Mid-Tower
Lighting	ARGB
Colour	Black
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
