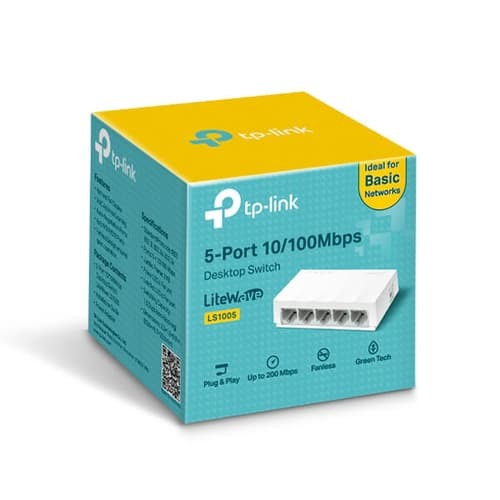

TP-Link LS1005 Unmanaged Desktop Switch

₹640

MRP ₹950 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The LS1005G is a 5-port Gigabit Ethernet switch designed for simple, reliable network connections in homes, schools, and small businesses. It provides fast, energy-efficient networking without complex setup.

Full specifications ↓

Highlights

Plug and play setup with no configuration needed
Fanless design ensures quiet operation in any environment
Green Ethernet technology automatically adjusts power consumption
IEEE 802.3X flow control ensures reliable data transfer
5× Gigabit ports support fast file transfers without interference
Energy-efficient with max power consumption of 3.7W
Compact size fits easily on desktops or walls
Works in temperatures from 0°C to 40°C

Specifications

Standards and Protocols	IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface	5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 5VDC/0.6A)
Dimensions ( W x D x H )	3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)
Max. Power Consumption	3.7W
Max. Heat Dissipation	12.6 BTU/h
Packet Buffer Memory	1.5 Mb
Jumbo Frame	16 KB
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.4 Mpps
Green Technology	Energy-efficient technology, power consumption automatically adjusts according to link status and cable length
802.3X Flow Control	Provides reliable data transfer
Transmission Method	Store and Forward
Certification	FCC
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40℃~60℃ (-40℉~140℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5%~90% non-condensing

Who should buy it

This switch is ideal for users needing a simple, quiet network solution for home, dormitory, or small office setups. It is not for users requiring Power over Ethernet (PoE) or high-density network connections.

Compatibility

The LS1005G works with networked devices like computers, printers, webcams, and IPTVs. It supports all standard Ethernet cables and requires an external power adapter.

Fully compatible with networked devices such as computers, printers, webcams, IPTVs.

What's in the box

5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Frequently asked questions

What is the power consumption of the LS1005G?

The LS1005G has a max power consumption of 3.7W.

What is the maximum switching capacity of the LS1005G?

The LS1005G has a switching capacity of 10 Gbps.

How many devices can be connected to the LS1005G simultaneously?

The LS1005G has 5 ports, so up to 5 devices can be connected.

What is the operating temperature range for the LS1005G?

The LS1005G operates between 0°C and 40°C.

Is the LS1005G compatible with all types of network cables?

The LS1005G supports standard Ethernet cables as it uses IEEE 802.3 protocols.

Brand warranty: as per manufacturer from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	TP-Link
Category	Networking
Model / MPN	LS1005G
Standards and Protocols	IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface	5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 5VDC/0.6A)
Dimensions ( W x D x H )	3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)
Max. Power Consumption	3.7W
Max. Heat Dissipation	12.6 BTU/h
Packet Buffer Memory	1.5 Mb
Jumbo Frame	16 KB
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.4 Mpps
Green Technology	Energy-efficient technology, power consumption automatically adjusts according to link status and cable length
802.3X Flow Control	Provides reliable data transfer
Transmission Method	Store and Forward
Certification	FCC
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40℃~60℃ (-40℉~140℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5%~90% non-condensing
