ZEBRONICS H510 NVME M.2 Motherboard

₹6,289

🚚 Shipping ₹379 · FREE on orders above ₹25,000

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

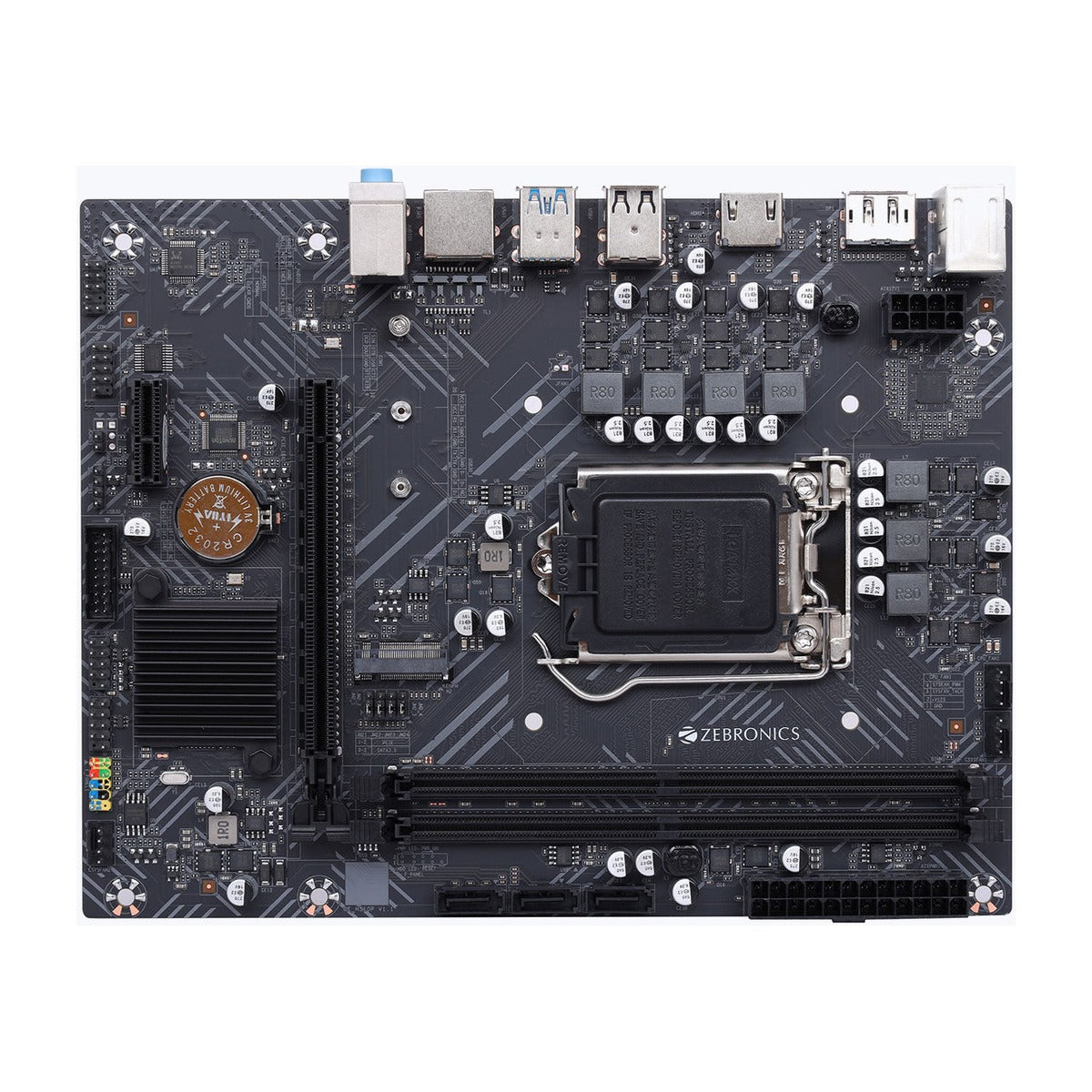

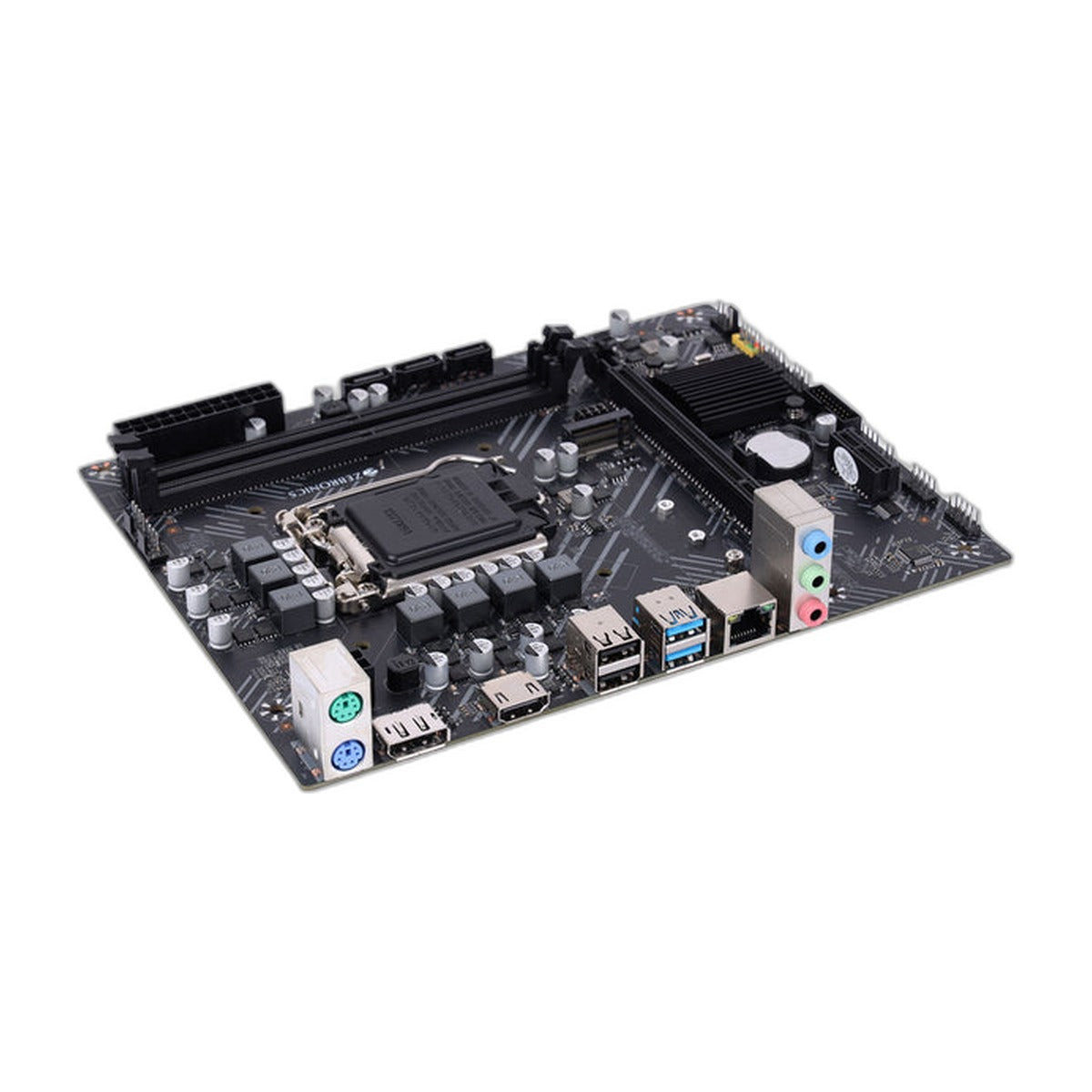

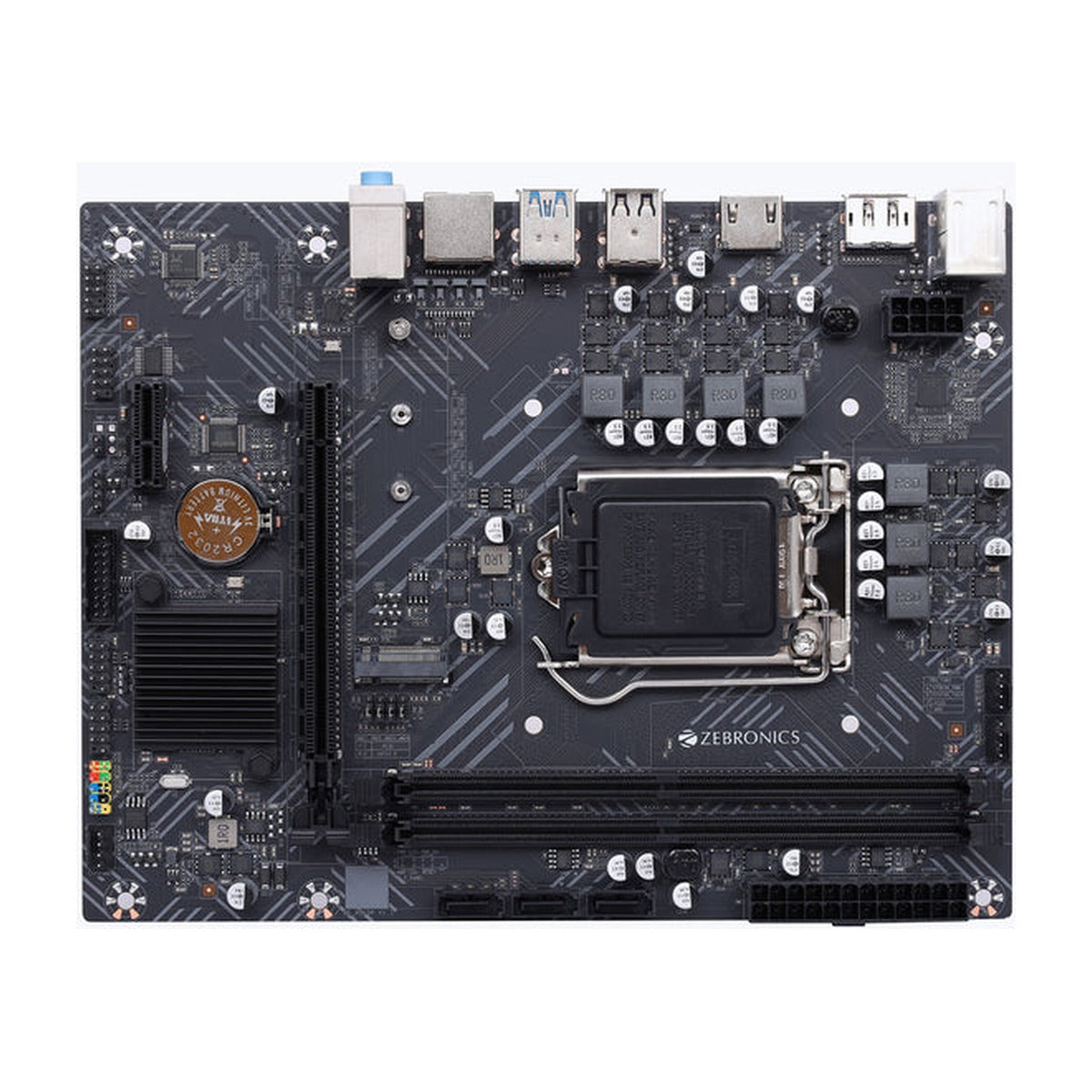

Zeb H510 NVMe - LGA1200 Socket is a Micro-ATX motherboard for Intel 10th and 11th Generation LGA1200 processors. It suits builders who want a compact desktop with NVMe M.2 storage support and standard connectivity for home or office use.

Full specifications ↓

Highlights

Supports Intel H510 chipset for LGA1200 10th & 11th Gen processors
Includes an M.2 slot for NVMe storage
Micro-ATX form factor fits Micro-ATX cases
Supports up to 64GB DDR4 across 2 DIMM slots
Rear I/O includes HDMI and DisplayPort for display output
Three SATA 3.0 ports for SATA storage devices
Gigabit Ethernet (10/100/1000 Mbps) onboard
Includes common front and USB headers for case connectivity

Specifications

Supported CPU	Intel i3/i5/i7/Celeron/Pentium 10th & 11th Generation Series Processor in LGA 1200
Chipset	Intel H510
Memory Supported	2 Nos. DDR4 DIMM Memory Slots; Memory up to 64GB; Supports DDR4 2133/2400/2666/2800 MHz Memory
BIOS	AMI BIOS
I/O Interface	1 x HDMI Port, 2 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio Jacks, 1 x Display Port, 1 x PS/2 for Keyboard & Mouse
Onboard Interface	1 x 24 Pin ATX Power Connector, 1 x 8 Pin ATX 12V Power Connector, 1 x Front Panel Connector, 1 x Front Audio Connector, 1 x Speaker Connector, 2 x USB 2.0 Connectors, 1 x USB 3.0 Connector, 1 x CPU Fan Connector, 2 x SYS Fan Connector, 3 x SATA 3.0, 1 x COM Port Connector, 1 x CMOS reset connector
Integrated LAN	Supports 10/100/1000 Mbps Ethernet LAN
Expansion Slot	1 x PCI Express 4.0 x16 Slot, 1 x M.2 Slot, 1 x PCI Express 3.0 x1 Slot
Form Factor	Micro-ATX
Country of Origin	People’s Republic of China
SKU	MBZ54 - H510NVMe
Product Type	Motherboards

Who should buy it

Choose this board if you plan a compact Intel 10th or 11th Gen build with NVMe support and need basic modern I/O. If you need many PCIe expansion cards or advanced overclocking features, consider a different model.

Compatibility

Works with Intel LGA1200 socket CPUs (10th & 11th Generation i3/i5/i7/Celeron/Pentium) and supports 2 x DDR4 DIMM up to 64GB at DDR4 2133/2400/2666/2800 MHz. It provides one M.2 slot and three SATA 3.0 ports for storage.

Compatible with Intel LGA 1200 socket CPUs: 10th & 11th Generation Intel i3/i5/i7/Celeron/Pentium
Memory: 2 x DDR4 DIMM up to 64GB; supports DDR4 2133/2400/2666/2800 MHz

What's in the box

ZEB-H510 Motherboard - 1 U
SATA Cable - 1 U
I/O Backplate - 1 U
Driver Disc - 1 U
User Manual - 1 U

Frequently asked questions

Does this motherboard support Intel 11th Gen CPUs?

Yes. It is compatible with Intel 10th and 11th Generation LGA1200 processors including i3/i5/i7/Celeron/Pentium.

How much RAM maximum does the board support and what DDR4 speeds are supported?

The board supports up to 64GB across 2 DDR4 DIMM slots and accepts DDR4 2133/2400/2666/2800 MHz memory.

Does the board have an M.2 NVMe slot and how many M.2 slots are present?

Yes. It includes one M.2 slot for NVMe storage.

What are the rear I/O display outputs (HDMI/DisplayPort/VGA)?

Rear I/O includes 1 x HDMI port and 1 x DisplayPort for display output.

What is the form factor of the motherboard and will it fit standard Micro-ATX cases?

The motherboard is Micro-ATX form factor and is intended to fit standard Micro-ATX cases.

How many SATA 3.0 ports and PCIe slots are available?

There are 3 x SATA 3.0 ports. Expansion slots include 1 x PCI Express 4.0 x16 and 1 x PCI Express 3.0 x1.

What is the exact SKU/MPN for ordering or warranty registration?

The SKU is MBZ54 - H510NVMe.

What is the manufacturer warranty period for this motherboard?

The product comes with a 3 Years warranty.

Brand warranty: 3 Years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

ZEBRONICS H510 NVME M.2 Motherboard — specifications

Brand	Zebronics
Category	Motherboard
Model / MPN	MBZ54 - H510NVMe
Supported CPU	Intel i3/i5/i7/Celeron/Pentium 10th & 11th Generation Series Processor in LGA 1200
Chipset	Intel H510
Memory Supported	2 Nos. DDR4 DIMM Memory Slots; Memory up to 64GB; Supports DDR4 2133/2400/2666/2800 MHz Memory
BIOS	AMI BIOS
I/O Interface	1 x HDMI Port, 2 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio Jacks, 1 x Display Port, 1 x PS/2 for Keyboard & Mouse
Onboard Interface	1 x 24 Pin ATX Power Connector, 1 x 8 Pin ATX 12V Power Connector, 1 x Front Panel Connector, 1 x Front Audio Connector, 1 x Speaker Connector, 2 x USB 2.0 Connectors, 1 x USB 3.0 Connector, 1 x CPU Fan Connector, 2 x SYS Fan Connector, 3 x SATA 3.0, 1 x COM Port Connector, 1 x CMOS reset connector
Integrated LAN	Supports 10/100/1000 Mbps Ethernet LAN
Expansion Slot	1 x PCI Express 4.0 x16 Slot, 1 x M.2 Slot, 1 x PCI Express 3.0 x1 Slot
Form Factor	Micro-ATX
Country of Origin	People’s Republic of China
SKU	MBZ54 - H510NVMe
Product Type	Motherboards
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
