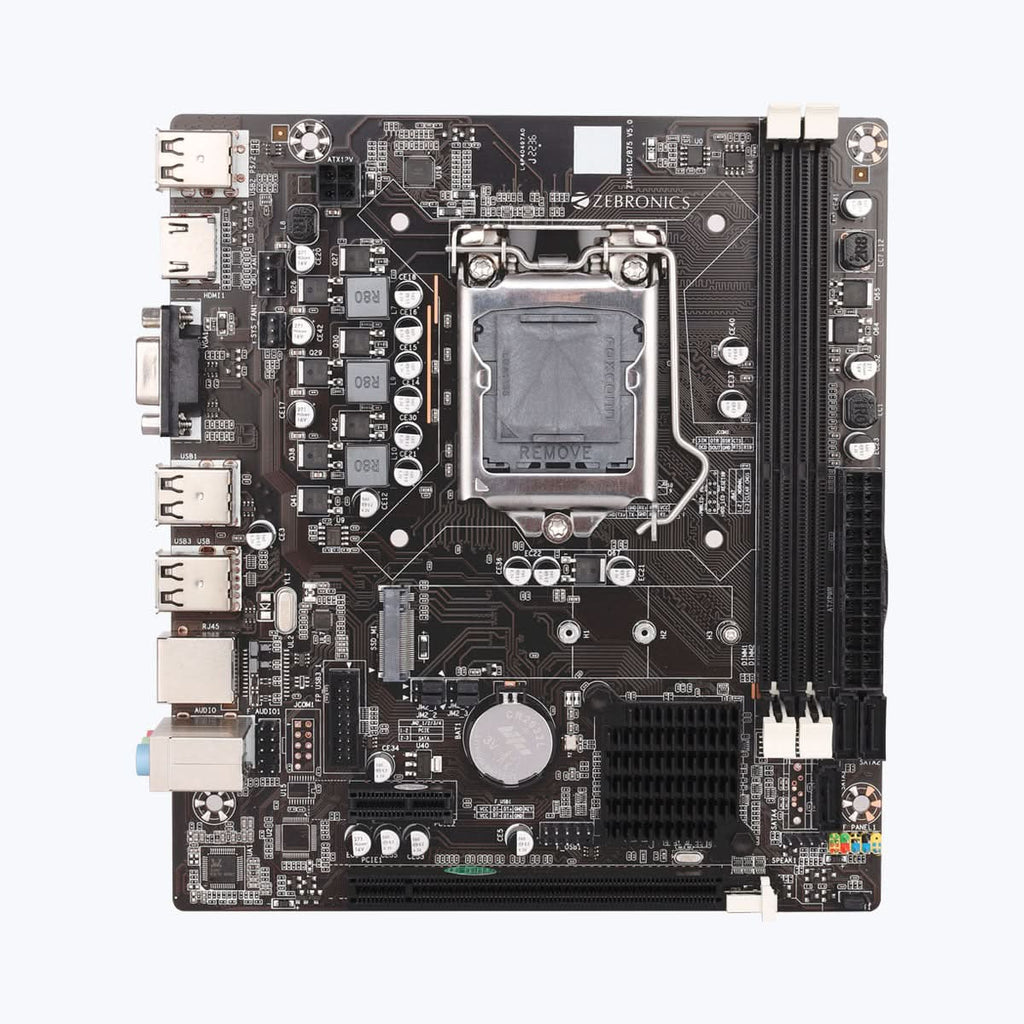

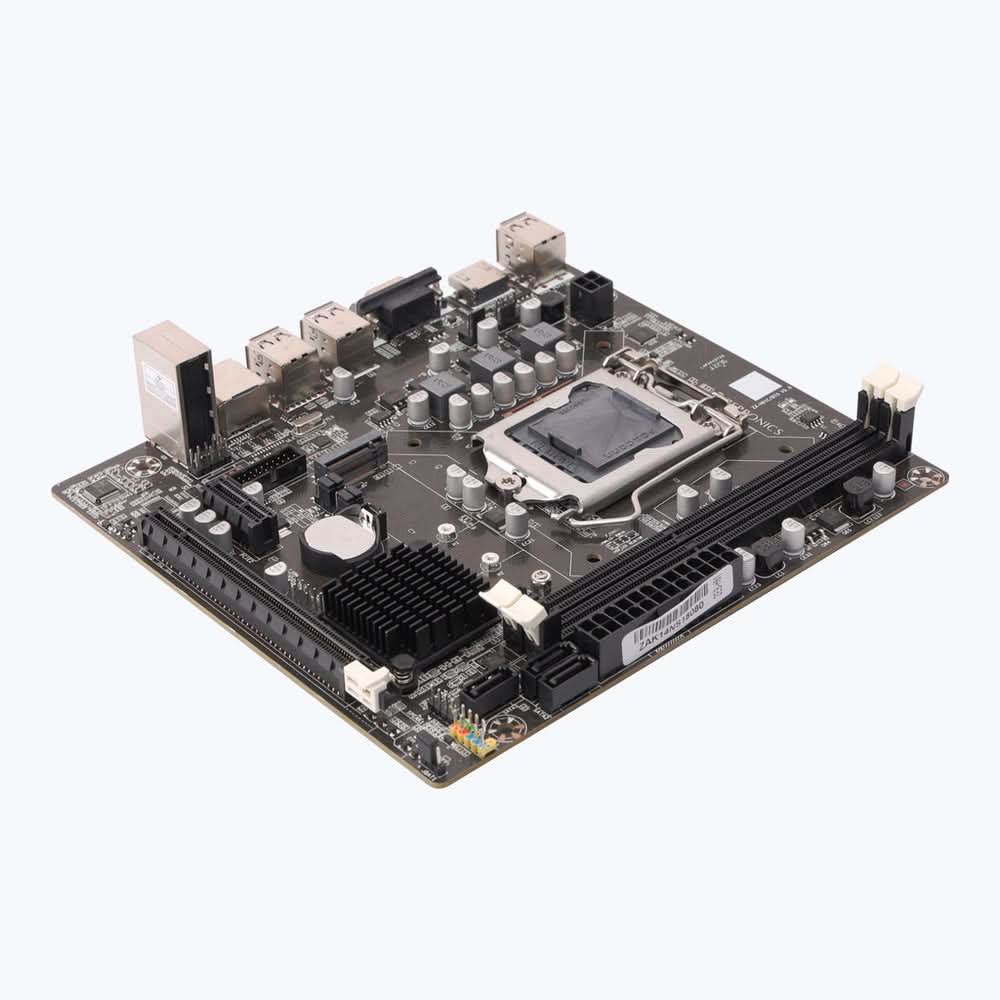

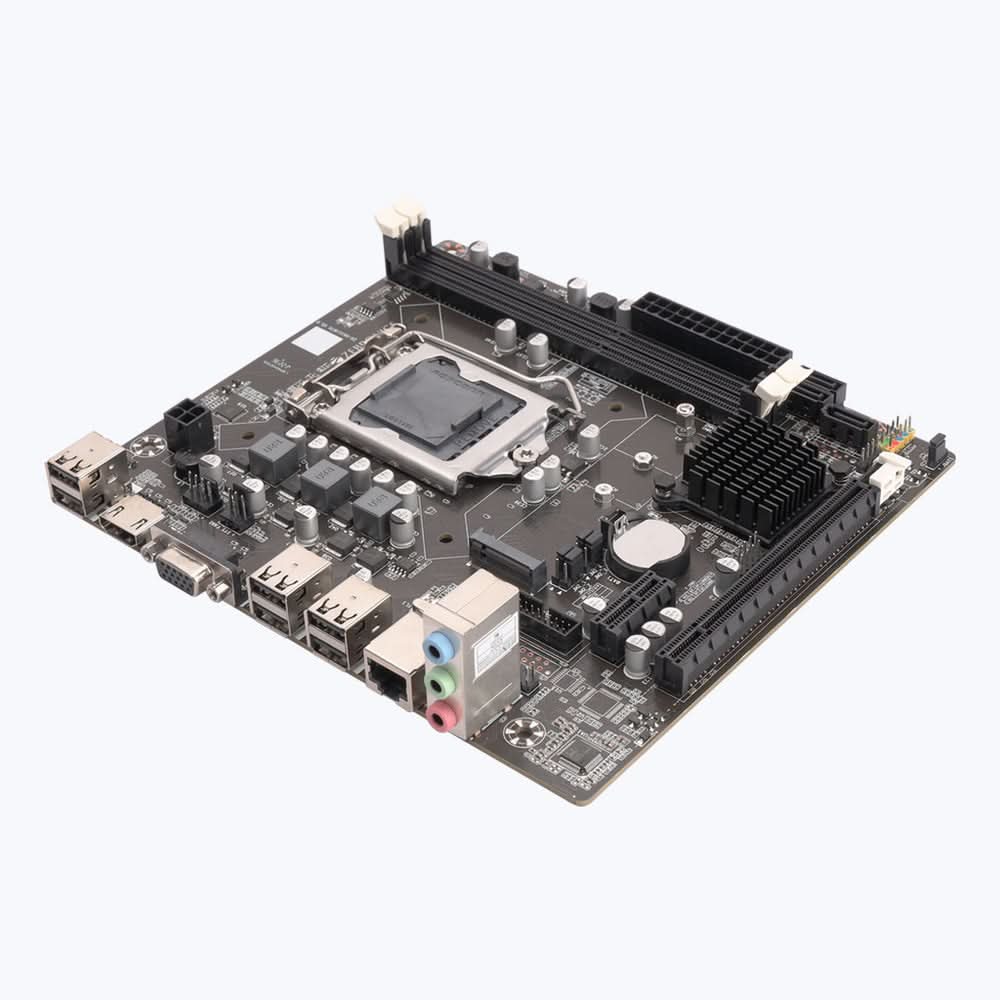

The Zeb H61NVMe motherboard is designed for building desktop PCs with Intel processors. It supports modern memory and storage options for smooth performance.

Full specifications ↓

Highlights

Supports dual channel DDR3 memory up to 16GB
Features M.2 slot for fast storage
Uses Intel H61/H67 chipset for reliable performance
Includes AMI BIOS for easy setup
Offers 6 USB 2.0 ports for connecting peripherals
Has 1 x PCI Express 3.0 x16 slot for graphics cards
Provides Realtek 8106E LAN for basic internet
Includes all necessary cables and manuals in the box

Specifications

Intel H61/H67 Chipset	Intel H61/H67 Chipset
Supports dual channel DDR3 1066/1333/1600MHz memory	Supports dual channel DDR3 1066/1333/1600MHz memory
AMI BIOS	AMI BIOS
Micro-ATX	Micro-ATX
Memory up to 16GB	Memory up to 16GB
M.2 slot	M.2 slot
1 x PCI Express 3.0 x16 size slot	1 x PCI Express 3.0 x16 size slot
Product Type	Motherboards
Supported CPU	Socket 1155 Intel Pentium/Celeron Series Processors/ i7 / i5 / i3 series CPU
Chipset	Intel H61/H67 Chipset
Memory Supported	2nos DDR3 Dual channel RAM slots Memory up to 16GB Supports dual channel DDR3 1066/1333/1600MHz memory
BIOS	AMI BIOS

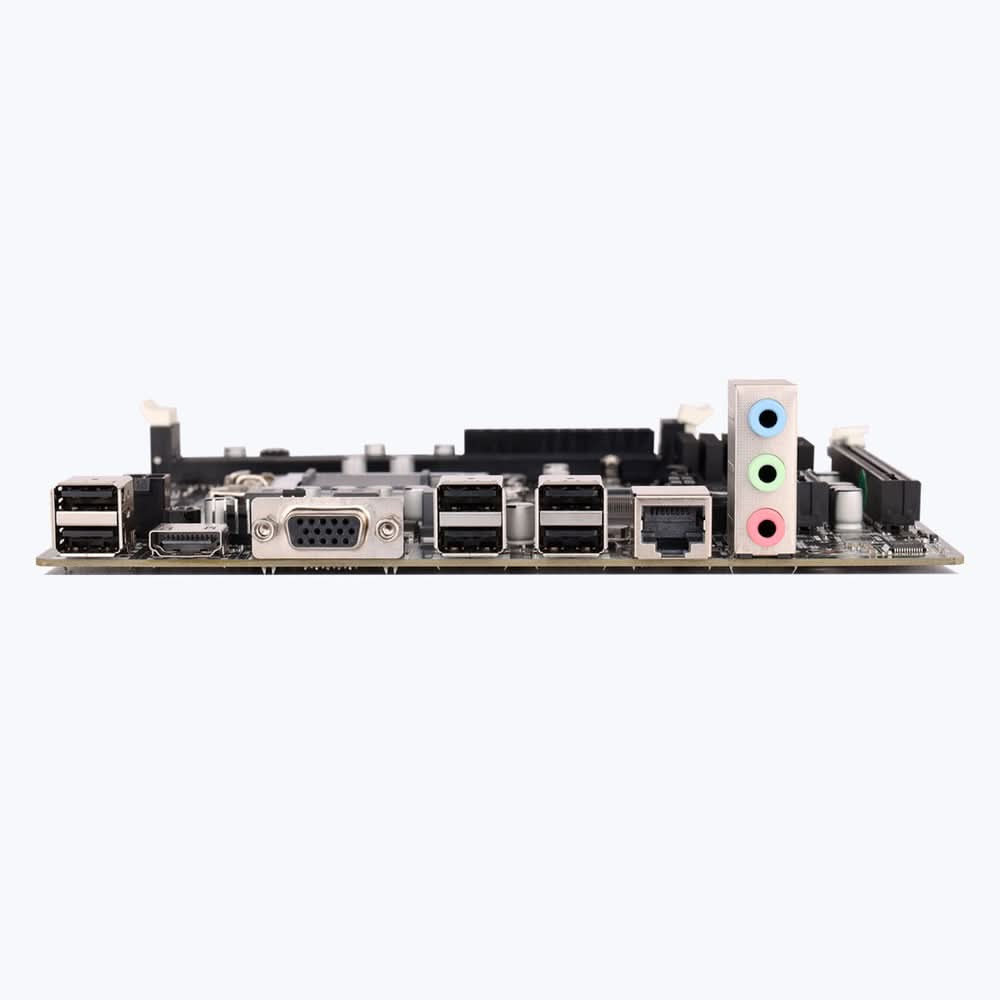

I/O Interface	1 x HD port, 1 x VGA Port, 6 x USB 2.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio
Onboard Interface	1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 2 x Fan Connectors, 4 x SATA II Ports, 1 x USB 2.0 Header, 1 x 2pin CMOS Header, 1 x Debug Card Header, 1 x M.2 Slot
Integrated Sound	Stereo Audio
Integrated LAN	Supports Realtek 8106E 10/100 Mbps
Expansion Slot	1 x PCI Express 3.0 x16 size slot
Form Factor	Micro-ATX
Country of Origin	People’s Republic of China
Package contents	Motherboard 1 U SATA Cable 1 U I/O Backplate 1 U Driver Disc 1 U User Manual 1 U

Who should buy it

This motherboard is for buyers building budget-friendly desktops with Intel Socket 1155 processors. It is not for users needing newer socket types or high-end gaming setups.

Compatibility

Works with Socket 1155 Intel Pentium/Celeron Series Processors and i7/i5/i3 series CPUs. Requires DDR3 memory modules up to 16GB. Needs a compatible case with Micro-ATX form factor.

Socket 1155 Intel Pentium/Celeron Series Processors/ i7 / i5 / i3 series CPU

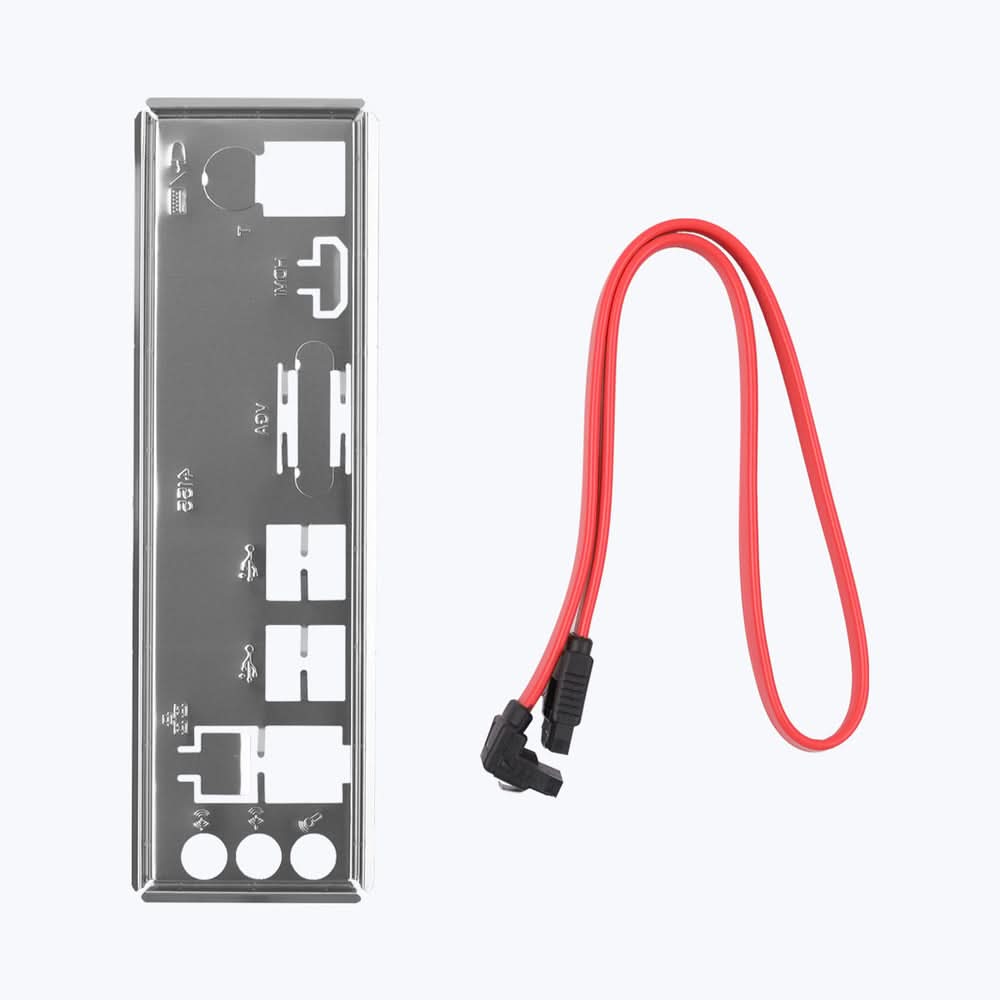

What's in the box

Motherboard
SATA Cable
I/O Backplate
Driver Disc
User Manual

Frequently asked questions

What is the maximum memory supported on this motherboard?

This motherboard supports up to 16GB of DDR3 memory in dual channel mode.

Does it support M.2 NVMe SSD?

Yes, it has an M.2 slot for NVMe SSDs.

What is the chipset used in this motherboard?

It uses the Intel H61/H67 chipset.

What is the form factor of this motherboard?

The form factor is Micro-ATX.

What is the BIOS type used in this motherboard?

It uses AMI BIOS.

What is the maximum speed of the DDR3 memory supported?

It supports DDR3 memory at 1066/1333/1600MHz speeds.

What is the LAN speed supported by this motherboard?

It supports Realtek 8106E 10/100 Mbps LAN.
