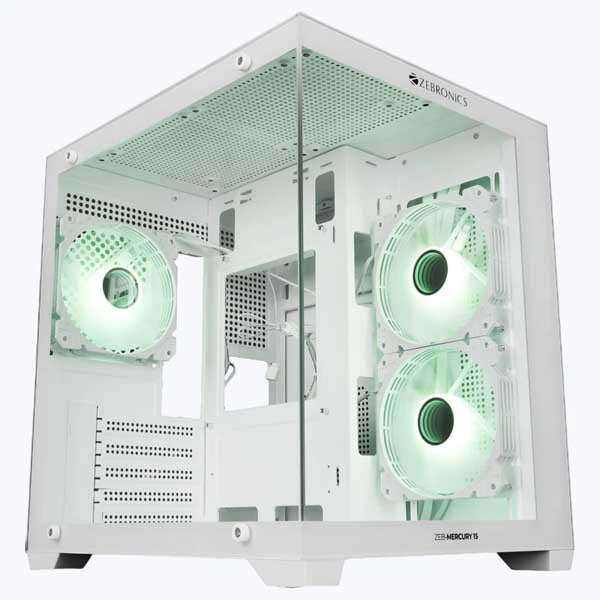

Zebronics Zeb Mercury 15 mATX Gaming Cabinet (White)

Key features

• Cube form factor designed for mATX/ITX motherboards
• Tempered glass front and side panels
• Separate PSU chamber for cable management
• Supports up to 3 x 2.5-inch SSDs and 1 x 3.5-inch HDD
• Supports CPU coolers up to 165mm and graphics cards up to 330mm
• Top mount supports a 240mm AIO liquid cooler
• Magnetic dust filter on top panel
• 5 expansion slots for add-in cards
• Front USB 3.0 port plus additional USB and audio jacks

Understand This Product — TechCureIndia

What it does

This is a PC cabinet (chassis) that houses and protects internal PC components such as the motherboard, storage drives, power supply, and cooling hardware, while providing airflow and front panel connectivity.

What the key specifications mean

• Form Factor (Cube): A compact cube-shaped layout suited for smaller desk footprints compared to standard tower cases.
• Motherboard support (mATX/ITX): Only mATX and ITX sized motherboards will fit; standard ATX boards are not supported.
• HDD (3.5) - 1 Max: Buyers needing more than one 3.5-inch mechanical drive will need external or alternate storage solutions.
• SSD (2.5) - 3 Max: Allows installing up to three 2.5-inch SSDs for primary and secondary storage.
• CPU Cooler size - 165mm Max: Limits the height of air coolers that can be installed; taller coolers will not fit.
• VGA Size - 330mm Max: Defines the longest graphics card that can be installed in the case.
• AIO Cooler size - Top - 240mm: The top mount is designed for a 240mm radiator liquid cooler only.
• Expansion slot - 5: Determines how many expansion cards (e.g., GPU, capture card) can be mounted.
• USB - 1 x USB 3.0, 2 x USB: Front panel connectivity for peripherals; one port offers USB 3.0 speeds.
• PSU - Separate Chamber: The power supply is isolated in its own compartment for airflow and cable management.
• Dust Filter - Top - Magnetic: Removable magnetic filter on top makes cleaning dust from intake fans easier.

Practical benefits

• Compact footprint suited for small desks or tight spaces
• Tempered glass panels allow visibility of internal components
• Separate PSU chamber helps with cable management and airflow separation
• Flexible fan mounting options across top, bottom, side and rear
• Magnetic top dust filter for easier maintenance

Who it suits

• Builders using mATX or ITX motherboards
• Users wanting a compact cube-style cabinet with glass panels
• Builds requiring up to three 2.5-inch SSDs and one 3.5-inch HDD
• Systems with a single GPU up to 330mm in length

Compatibility and installation

• Motherboard must be mATX or ITX form factor
• CPU cooler height must not exceed 165mm
• Graphics card length must not exceed 330mm
• Top AIO cooler must be 240mm size
• Product dimensions: 27.5 x 33.5 x 35.5 cm
• Net weight: 3.6 Kg
• Rear fan mount: 120mm x 1
• Side fan mount: 120mm x 2
• Top and bottom fan mounts: 120mm x 2 or 140mm x 2 (optional, not included by default)
• Front panel offers 1 x USB 3.0 port, 2 x USB ports, and headphone/mic audio jacks

Important limitations

• Supports only mATX/ITX motherboards, not full ATX
• Maximum of 1 x 3.5-inch HDD
• Maximum of 3 x 2.5-inch SSDs
• Top and bottom case fans are optional and not included as standard
• AIO support limited to 240mm at the top only

Package contents

• 1 x Zebronics Zeb Mercury 15 chassis (cabinet only)

Buy separately:

• Power supply unit (PSU)
• Motherboard, CPU, RAM, storage drives
• Graphics card
• CPU cooler or AIO liquid cooler
• Optional top/bottom case fans (120mm or 140mm)

Check before you buy

• Confirm your motherboard is mATX or ITX form factor
• Verify your CPU cooler height is within 165mm
• Verify your graphics card length is within 330mm
• Confirm your AIO cooler radiator size matches 240mm for top mounting
• Check if you need to separately purchase top/bottom case fans
