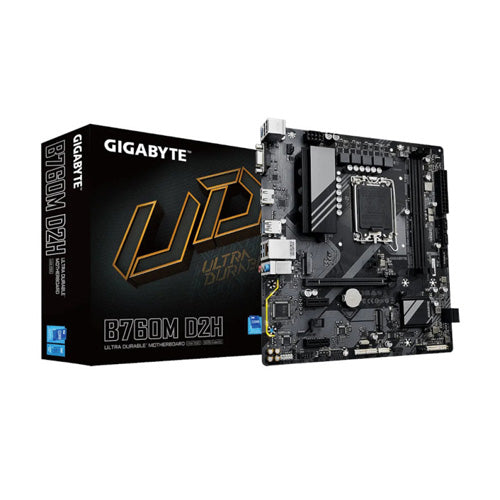

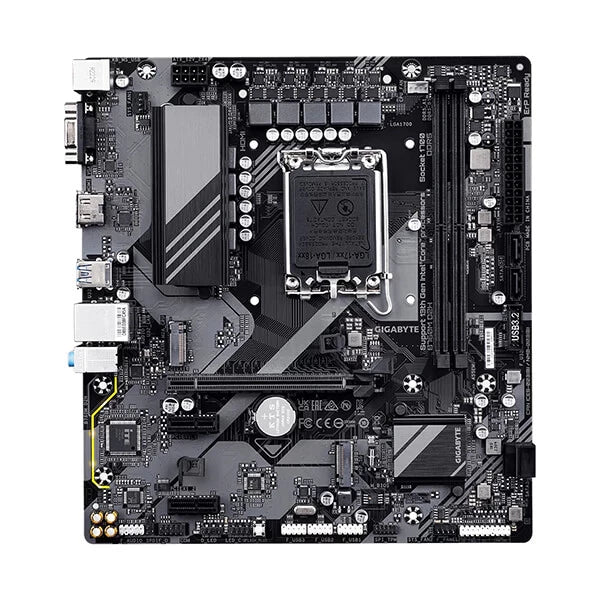

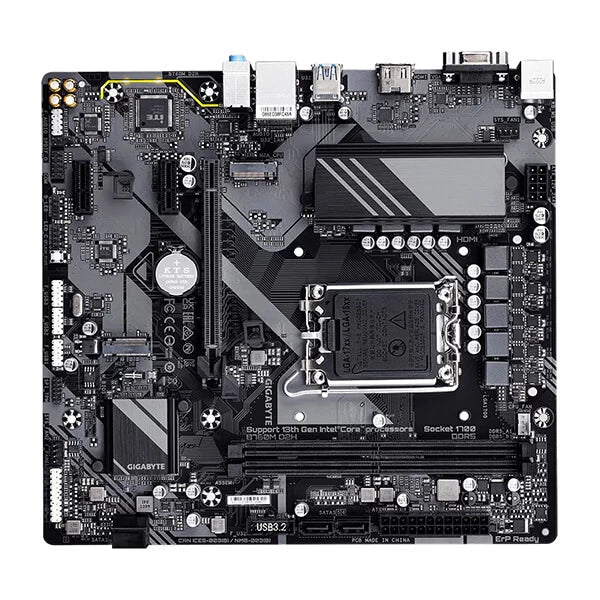

Gigabyte B760M D2H DDR5 Intel LGA 1700 Motherboard

₹8,875

🚚 Shipping ₹379 · FREE on orders above ₹25,000

EMI available at checkout (credit / debit card EMI via Razorpay)

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The Gigabyte B760M D2H (Rev. 1.0) is a Micro ATX motherboard designed for building desktop PCs with Intel 12th, 13th, and 14th Gen processors. It supports DDR5 memory and offers features for smooth computing and gaming.

Full specifications ↓

Better options in the B760 chipset range

Same B760 chipset family, a little more money — here is what you get extra.

GIGABYTE B760M DS3H WIFI6E DDR4 GEN5 Motherboard, Intel B760, LGA1700, Wi-Fi 6E, 2.5GbE LAN, PCIe 5.0
- Built-in Wi-Fi — no extra Wi-Fi card needed
- PCIe 5.0 support for the newest GPUs / SSDs
- Faster 2.5G (or better) wired network
₹14,116+₹4,940 more
Gigabyte B760M Gaming AC DDR4 M-ATX Gen5 Motherboard
- Built-in Wi-Fi — no extra Wi-Fi card needed
- PCIe 5.0 support for the newest GPUs / SSDs
₹11,245+₹1,250 more
MSI B760M GAMING PLUS WIFI GEN5 Micro-ATX LGA 1700 DDR5 Motherboard
- Built-in Wi-Fi — no extra Wi-Fi card needed
- PCIe 5.0 support for the newest GPUs / SSDs
₹17,356+₹6,130 more

Highlights

Supports Intel 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors
DDR5 memory support up to 8000(O.C.) MT/s for fast performance
2.5GbE LAN for quick internet speeds
Dual Channel DDR5 with XMP memory module support
2 PCIe 4.0 x4 M.2 connectors for fast storage
HDMI and D-Sub for display connectivity
EZ-Latch design for easy graphics card installation
Q-Flash Plus for BIOS updates without CPU or memory

Specifications

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU	(Please refer "CPU Support List" for more information.)
Chipset	Intel® B760 Express Chipset
Memory	Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
Audio	Realtek® Audio CODEC
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
USB	Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector

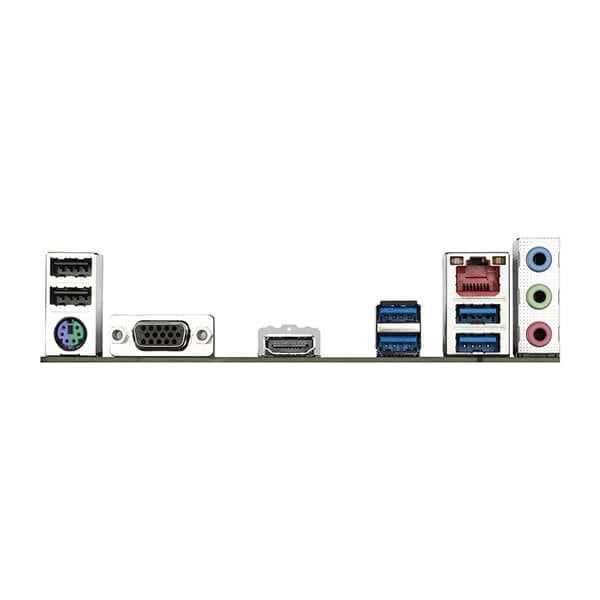

Back Panel Connectors	1 x PS/2 keyboard/mouse port
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
BIOS	1 x 128 Mbit flash
Unique Features	Support for GIGABYTE Control Center (GCC)
Bundle Software	Norton® Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 22.5cm

Who should buy it

This motherboard is for buyers building a new PC with Intel 12th, 13th, or 14th Gen processors. It is not for users needing support for AMD processors or older Intel sockets.

Compatibility

Requires an LGA1700 socket CPU from Intel 12th, 13th, or 14th Gen. Works with DDR5 memory modules up to 8000(O.C.) MT/s. Compatible with Windows 11 64-bit operating system.

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Frequently asked questions

What is the maximum RAM capacity supported by the Gigabyte B760M D2H?

The motherboard supports DDR5 memory modules up to 8000(O.C.) MT/s. Refer to the CPU Support List for more details.

Does the Gigabyte B760M D2H support HDMI 2.1?

The motherboard supports HDMI for display output but does not specify HDMI 2.1 version.

Can I use a 2.5GbE LAN card with the Gigabyte B760M D2H?

The motherboard has a built-in Realtek 2.5GbE LAN chip, so no additional card is needed.

What is the form factor of the Gigabyte B760M D2H?

The form factor is Micro ATX at 24.4cm x 22.5cm.

How many M.2 slots does the Gigabyte B760M D2H have?

The motherboard has 2 PCIe 4.0 x4 M.2 connectors.

What is the maximum memory speed supported by the Gigabyte B760M D2H?

The maximum memory speed is 8000(O.C.) MT/s for DDR5.

Does the Gigabyte B760M D2H support XMP memory modules?

Yes, it supports XMP memory modules with Dual Channel DDR5.

What is the BIOS version supported by the Gigabyte B760M D2H?

The BIOS is 128 Mbit flash, but specific version is not mentioned.

Brand warranty: as per manufacturer from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	Gigabyte
Category	Motherboard
Model / MPN	B760M D2H
CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU	(Please refer "CPU Support List" for more information.)
Chipset	Intel® B760 Express Chipset
Memory	Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
Audio	Realtek® Audio CODEC
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
USB	Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector
Back Panel Connectors	1 x PS/2 keyboard/mouse port
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
BIOS	1 x 128 Mbit flash
Unique Features	Support for GIGABYTE Control Center (GCC)
Bundle Software	Norton® Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 22.5cm
