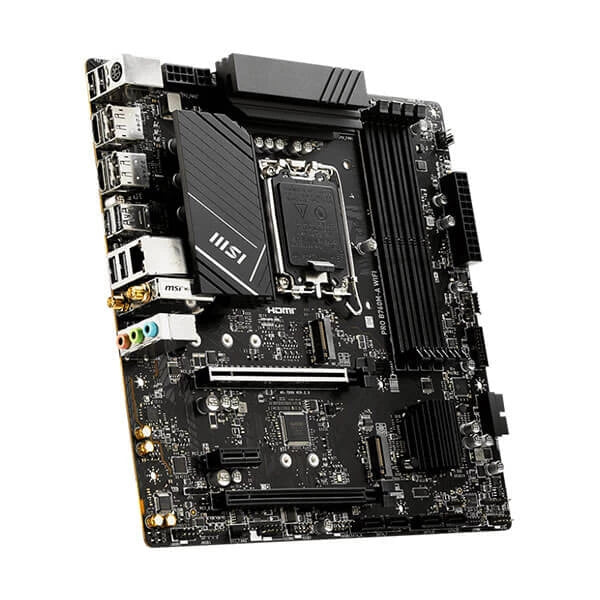

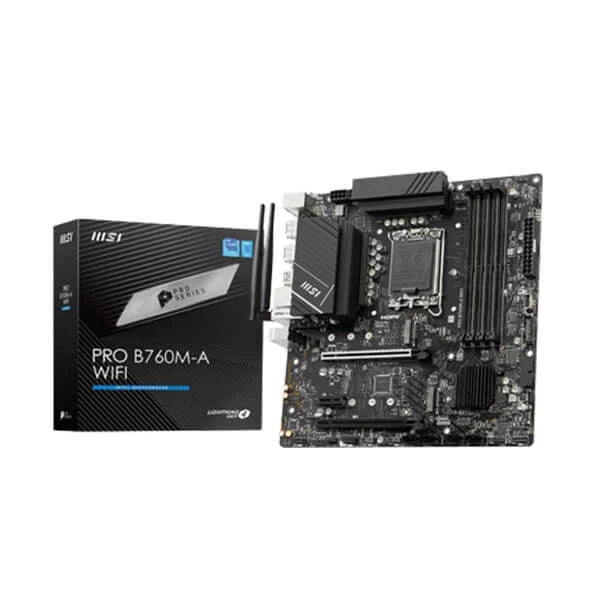

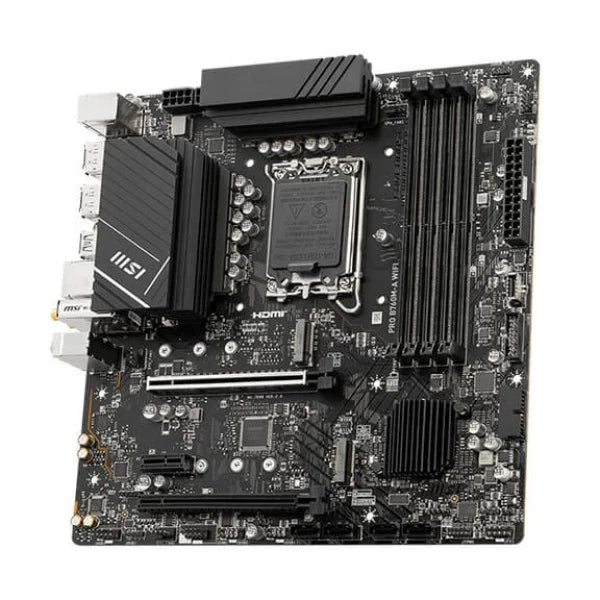

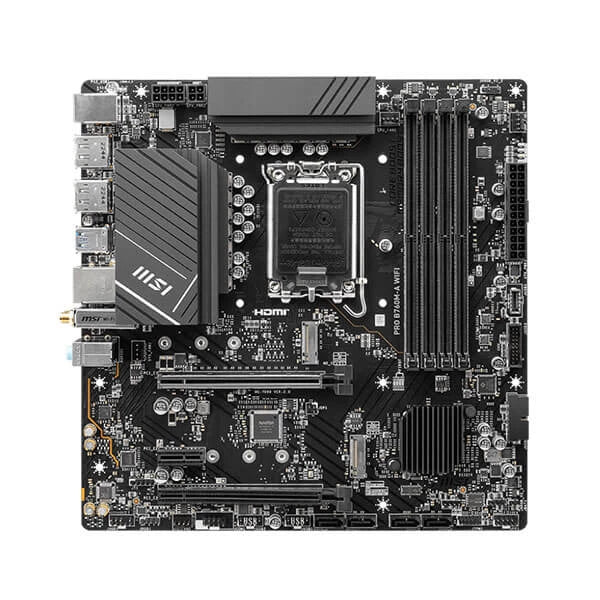

MSI Pro B760M-A Wifi DDR5 Intel Motherboard

₹15,187

MRP ₹19,999 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

EMI available at checkout (credit / debit card EMI via Razorpay)

✓ Sold by an MSI Authorized Channel Partner →

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The PRO B760M-A WIFI is a motherboard designed for building powerful desktop PCs. It supports the latest Intel processors and offers features for smooth multitasking and high-speed connectivity.

Full specifications ↓

Better options in the B760 chipset range

Same B760 chipset family, a little more money — here is what you get extra.

GIGABYTE B760M DS3H WIFI6E DDR4 GEN5 Motherboard, Intel B760, LGA1700, Wi-Fi 6E, 2.5GbE LAN, PCIe 5.0
- PCIe 5.0 support for the newest GPUs / SSDs
- Faster 2.5G (or better) wired network
₹14,116+₹50 more
MSI B760M GAMING PLUS WIFI GEN5 Micro-ATX LGA 1700 DDR5 Motherboard
- PCIe 5.0 support for the newest GPUs / SSDs
₹17,356+₹1,240 more
Gigabyte B760 DS3H AX DDR5 Intel LGA 1700 ATX Motherboard Supports Intel 12th, 13th & 14th Gen Processors
- Full ATX size: more slots and better spacing for a big GPU
₹17,909+₹1,280 more

Highlights

Supports Intel 14th, 13th, and 12th Gen processors for fast performance
4x DDR5 memory slots with up to 256GB capacity
2x HDMI 2.1 and 2x DisplayPort 1.4 for 4K 60Hz display output
2.5G LAN for faster internet speeds
Intel Wi-Fi 6E and Bluetooth 5.3 for modern wireless connectivity
M.2 slots supporting PCIe 4.0 for fast storage
Supports RAID 0, 1, 5, and 10 for SATA storage
Realtek ALC897 audio for clear sound

Specifications

CHIPSET	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz
ONBOARD GRAPHICS	2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
STORAGE	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear)
LAN	Realtek® RTL8125BG 2.5G LAN
INTERNAL IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED

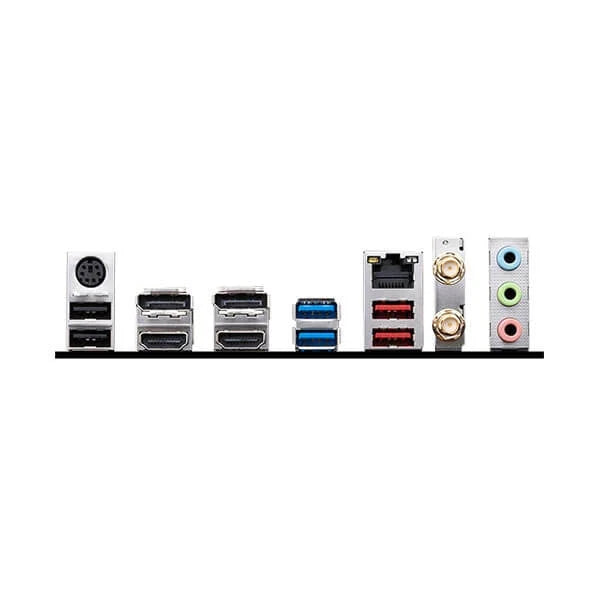

BACK PANEL PORTS	Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT	PCB INFO mATX 243.84mmx243.84mm

Who should buy it

This motherboard is ideal for users building a new PC for work or gaming. It may not be the best choice for those needing Mac compatibility or older processor support.

Compatibility

Works with Intel 14th, 13th, and 12th Gen processors, Intel Pentium Gold, and Celeron processors. Requires DDR5 memory and supports Windows 11 and Windows 10 64-bit.

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
Support for Windows® 11 64-bit, Windows® 10 64-bit

What's in the box

PCB INFO
mATX
243.84mmx243.84mm

Frequently asked questions

What is the maximum memory capacity supported by this motherboard?

The motherboard supports up to 256GB of DDR5 memory across 4 slots.

Does this motherboard support DDR5 memory?

Yes, it supports DDR5 memory with speeds up to 6800+ MHz.

What is the maximum PCIe speed supported by the M.2 slots?

M.2 slots support PCIe 4.0 x4 for fast storage performance.

Can this motherboard support Wi-Fi 6E and Bluetooth 5.3?

Yes, it includes Intel Wi-Fi 6E and supports Bluetooth 5.3.

What is the chipset used on this motherboard?

The chipset is Intel B760.

What is the form factor of this motherboard?

It is an mATX motherboard measuring 243.84mm x 243.84mm.

What is the maximum resolution supported by the HDMI and DisplayPort outputs?

HDMI 2.1 and DisplayPort 1.4 support up to 4K 60Hz resolution.

What is the maximum speed of the USB 3.2 Gen 2 ports?

USB 3.2 Gen 2 ports support up to 10Gbps speed.

Brand warranty: 3 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	MSI
Category	Motherboard
Model / MPN	PRO-B760M-A-WIFI-DDR5
CHIPSET	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
MEMORY	4x DDR5, Maximum Memory Capacity 256GB
ONBOARD GRAPHICS	2x HDMI™
SLOT	2x PCI-E x16 slot
AUDIO	Realtek® ALC897 Codec
STORAGE	2x M.2
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear)
LAN	Realtek® RTL8125BG 2.5G LAN
INTERNAL IO	1x Power Connector(ATX_PWR)
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	Keyboard / Mouse
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT	PCB INFO
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
