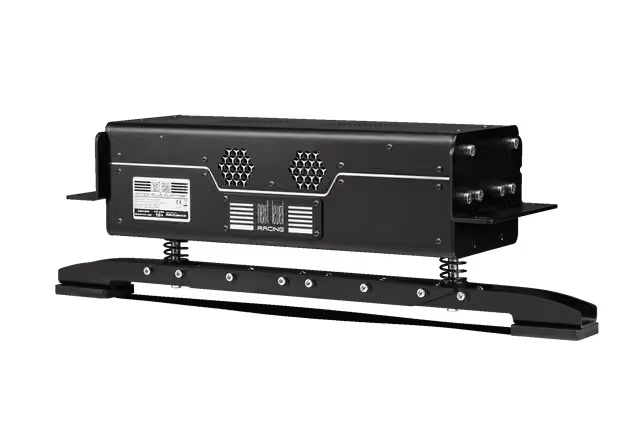

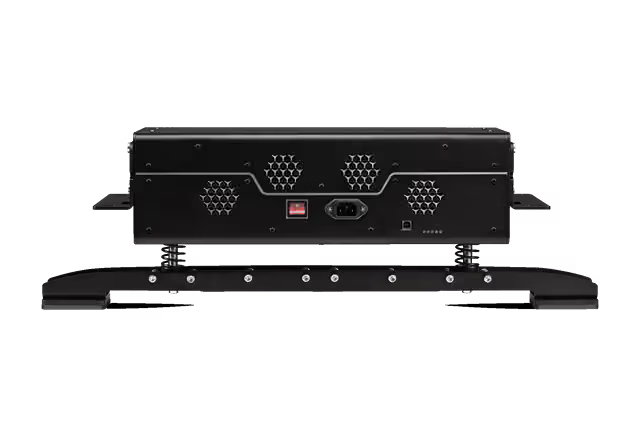

Next Level Racing Motion Plus Platform NLR-M007

Key features

• Delivers pitch, roll and partial heave chassis motion
• 2-DOF with a single unit, 3-DOF with full heave using two units
• Magnetic encoder feedback technology for motion accuracy

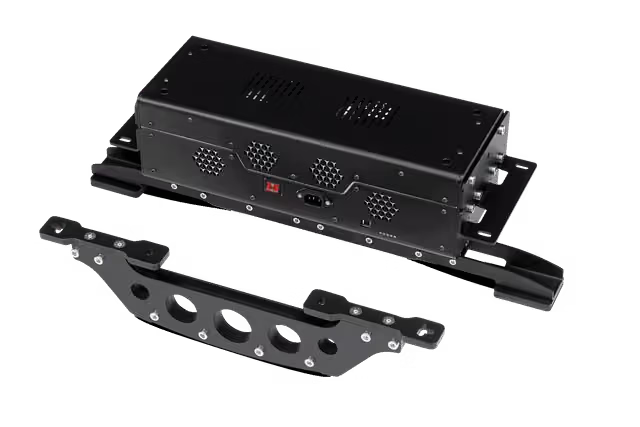

• Integrated pivot bar for single-unit setups
• Controlled via Next Level Racing Platform Manager software
• VR support available through VR Headway 2.0
• Supports payloads up to 250 kg
• Can be combined with Motion Platform V3 or Traction Plus Platform

Understand This Product — TechCureIndia

What it does

This is a motion simulator platform that sits beneath a sim racing or flight sim rig and physically moves it in response to in-game telemetry, adding pitch, roll and heave sensations to braking, acceleration, cornering, bumps and gear shifts.

What the key specifications mean

• Single Unit DOF: With one platform installed, the rig moves with 2 degrees of freedom (pitch and roll plus partial heave).
• Dual Unit DOF: Adding a second unit upgrades the setup to 3 degrees of freedom with full heave motion.
• Maximum Payload: Indicates the total rig weight (seat, wheel, pedals, frame) the platform can safely support, up to 250 kg.
• Maximum Acceleration: Describes how quickly the platform can move, affecting how sharp and responsive motion effects feel.
• Motion Processing: Shows how finely the platform calculates movement, up to 4000 microprocesses per second, for smoother motion output.
• Technology: Magnetic encoder feedback is used to track and control platform position accurately.
• VR Support: Compatible with VR Headway 2.0 for use alongside a VR headset during simulation.
• Power Supply Rating: States the electrical draw (321W) needed to run the platform.
• Operating Temperature: Defines the safe ambient temperature range (4°C to 45°C) for operating the unit.

Practical benefits

• Adds physical motion feedback to racing and flight simulation for greater immersion
• Scalable from 2-DOF to 3-DOF by adding a second unit
• Can be expanded into a larger motion ecosystem with other Next Level Racing platforms
• Software-adjustable motion effects to match user preference

Who it suits

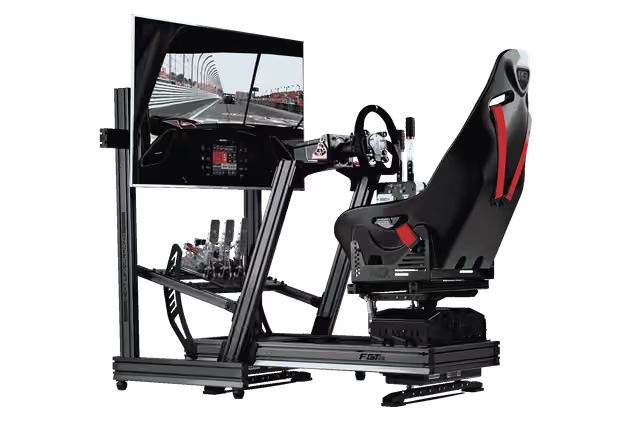

• Sim racing enthusiasts building an immersive cockpit setup

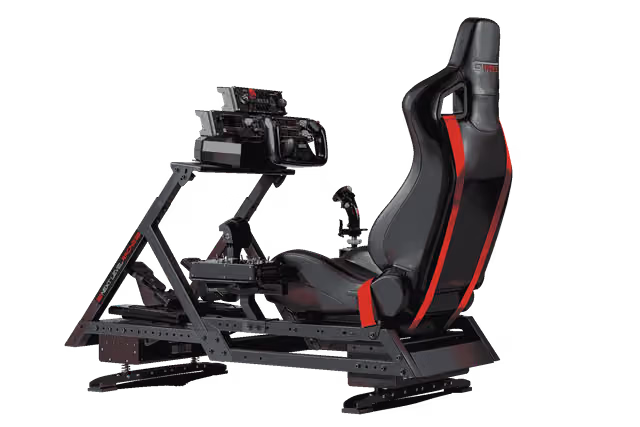

• Flight simulation users wanting physical motion feedback
• Users planning to expand into a multi-platform motion ecosystem

Compatibility and installation

• Requires Next Level Racing Platform Manager software
• Works with supported PC racing and flight simulation titles

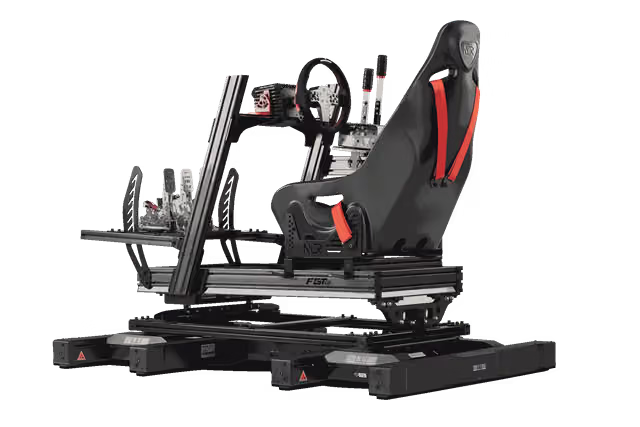

• Can be paired with Motion Platform V3 or Traction Plus Platform for an expanded system
• Requires a power supply rated at 4A 115VAC 60Hz or 2A 230VAC 50Hz, drawing up to 321W
• Product dimensions of 70 × 18.2 × 20 cm per unit
• Unit weighs 21.7 kg including the included pivot bar
• Must be operated within 4°C to 45°C ambient temperature
• Supports a maximum combined rig payload of 250 kg

Important limitations

• A single unit provides only 2-DOF motion; full 3-DOF with heave requires a second unit purchased separately
• Specification verification required for which simulation titles are officially supported

Package contents

• Pivot Bar

Buy separately:

• A second Motion Plus Platform unit (for 3-DOF with full heave)
• Motion Platform V3 or Traction Plus Platform (for ecosystem expansion)
• VR headset (for VR use with VR Headway 2.0)

Check before you buy

• Confirm your rig's total weight is within the 250 kg payload limit
• Verify available power supply matches the required voltage and current for your region
• Check available space matches the platform's footprint and height clearance needed for motion travel
• Confirm whether you need one or two units depending on desired degrees of freedom
